The Challenge:
The client required the inspection of 17 short-length pipe sections buried under an 8-lane urban highway. Time constraints meant that a simple, fast low-cost solution was required. A lack of previous inspection data and launchers and receivers added to the challenge.
No Launchers/Receivers
High number of short pipe sections
“Low cost” simple solution required
Time constraints
The Solution:
Small lightweight handheld ultrasonic rotary (UT-R) tools were custom-built to overcome the challenges this inspection posed. The reduced size and weight meant the tools could be launched by hand directly into the pipe via a disconnected flange. This also saved on time as launchers and receivers did not need to be attached and detached for each inspection run. Propulsion was achieved using a blind flange and water hose meaning that several inspections could be completed per day.
Small light-weight custom built ILI’s
Flange is detached to allow for loading and unloading of ILIs

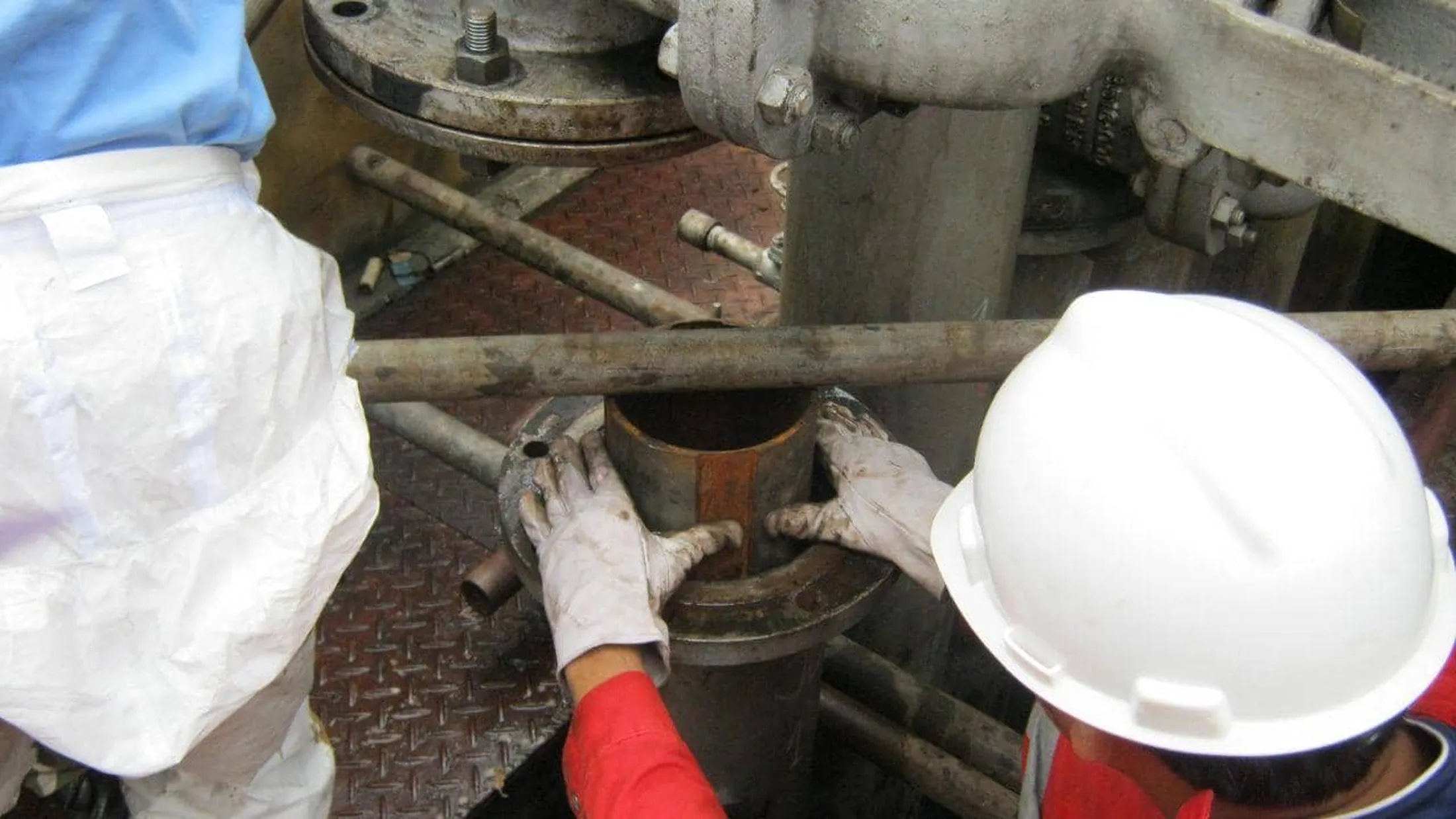

ILIs were hand loaded directly into the pipe section
Propulsion was achieved via a modified blind flange
Achieving multiple inspections per day and reducing shutdown times
)
